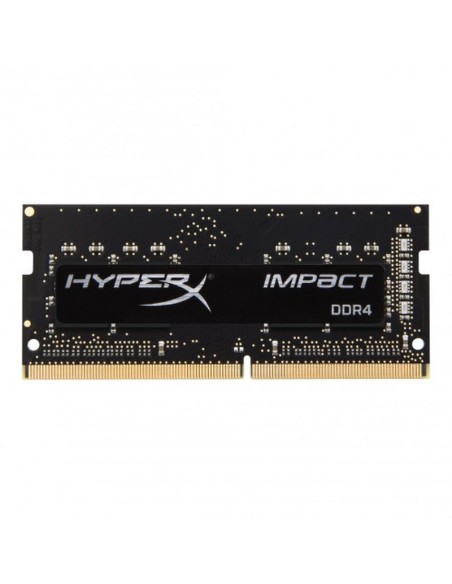

Kingston Memoria Sodimm Fury Impact Ddr4 16gb 3200mhz Cl20

KF432S20IB/16 16GB 2G x 64-Bit DDR4-3200 CL20 260-Pin SODIMM Continued >> FEATURES FURY KF432S20IB/16 is a 2G x 64-bit (16GB) DDR4-3200 CL20 SDRAM (Synchronous DRAM) 1Rx8, memory module, based on eight 2G x 8-bit FBGA components per module. Each module kit supports Intel® Extreme Memory Profiles (Intel® XMP) 2.0. Each module has been tested to run at DDR4-3200 at a low latency timing of 20-22-22 at 1.2V. Additional timing parameters are shown in the Plug-N-Play (PnP) Timing Parameters section below. The JEDEC standard electrical and mechanical specifications are as follows: CL(IDD) Row Cycle Time (tRCmin) Refresh to Active/Refresh Command Time (tRFCmin) Row Active Time (tRASmin) UL Rating Operating Temperature Storage Temperature 20 cycles 45.75ns(min.) 350ns(min.) 26.25ns(min.) 94 V - 0 0o C to +85o C -55o C to +100o C FACTORY TIMING PARAMETERS Default (Plug N Play): DDR4-3200 CL20-22-22 @1.2V XMP Profile #1: DDR4-3200 CL20-22-22 @1.2V XMP Profile #2: DDR4-2933 CL17-19-19 @1.2V Power Supply: VDD = 1.2V Typical VDDQ = 1.2V Typical VPP = 2.5V Typical VDDSPD = 2.2V to 3.6V On-Die termination (ODT) 16 internal banks; 4 groups of 4 banks each Bi-Directional Differential Data Strobe 8 bit pre-fetch Burst Length (BL) switch on-the-fly BL8 or BC4(Burst Chop) Height 1.18 (30.00mm
