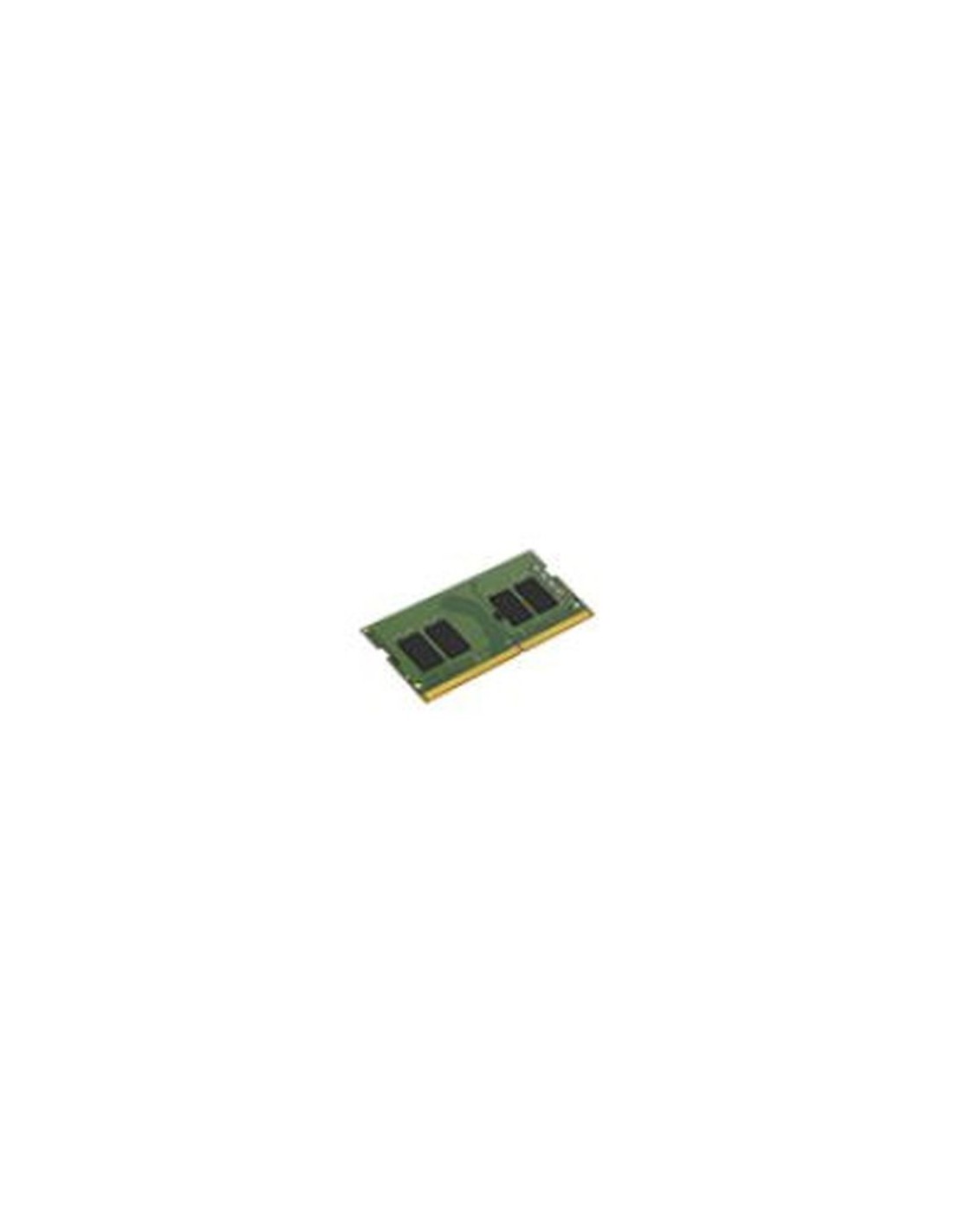

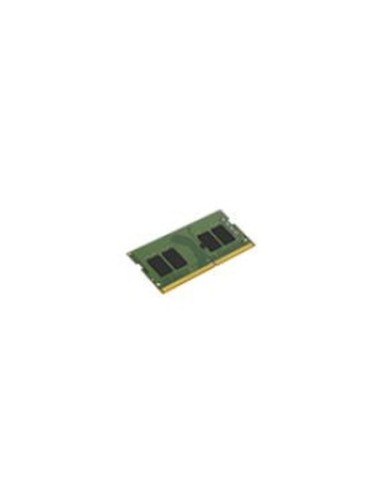

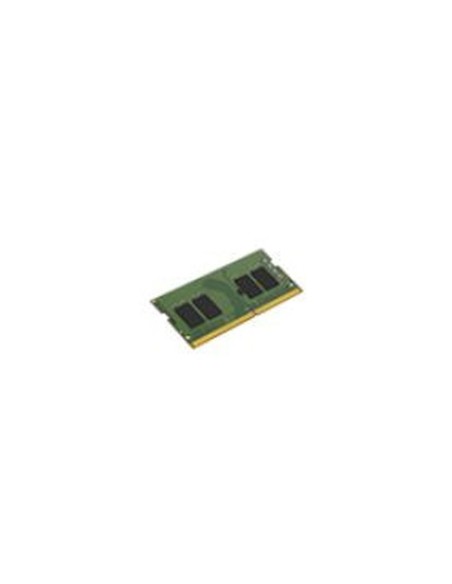

Kingston Memoria 8gb Ddr4 2666mhz Sodimm Cl19

KVR26S19S6/8 8GB 1Rx16 1G x 64-Bit PC4-2666 CL19 260-Pin SODIMM Continued >> FEATURES This document describes ValueRAMs KVR26S19S6/8 as a 1G x 64-bit (8GB) DDR4-2666 CL19 SDRAM (Synchronous DRAM), 1Rx16, memory module, based on four 1G x 16-bit FBGA components. The SPD is programmed to JEDEC standard latency DDR4-2666 timing of 19-19-19 at 1.2V. This 260-pin SODIMM uses gold contact fingers. The electrical and mechanical specifications are as follows: CL(IDD) Row Cycle Time (tRCmin) Refresh to Active/Refresh Command Time (tRFCmin) Row Active Time (tRASmin) UL Rating Operating Temperature Storage Temperature 19 cycles 45.75ns(min.) 350ns(min.) 32ns(min.) 94 V - 0 0o C to +85o C -55o C to +100o C Power Supply: VDD = 1.2V Typical VDDQ = 1.2V Typical VPP = 2.5V Typical VDDSPD = 2.2V to 3.6V Nominal and dynamic on-die termination (ODT) for data, strobe, and mask signals Low-power auto self refresh (LPASR) Data bus inversion (DBI) for data bus On-die VREFDQ generation and calibration Single-rank On-board I2 serial presence-detect (SPD) EEPROM 8 internal banks; 2 groups of 4 banks each Fixed burst chop (BC) of 4 and burst length (BL) of 8 via the mode register set (MRS) Selectable BC4 or BL8 on-the-fly (OTF) Fly-by topology Terminated control command and address bus PCB: Height 1.18 (30.00mm) RoHS Compliant and Halogen-Free https://www.kingston.com/dataSheets/KVR26S19S6_8.pdf
