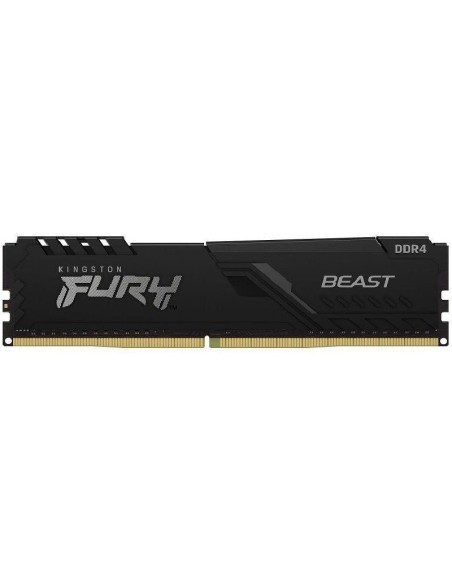

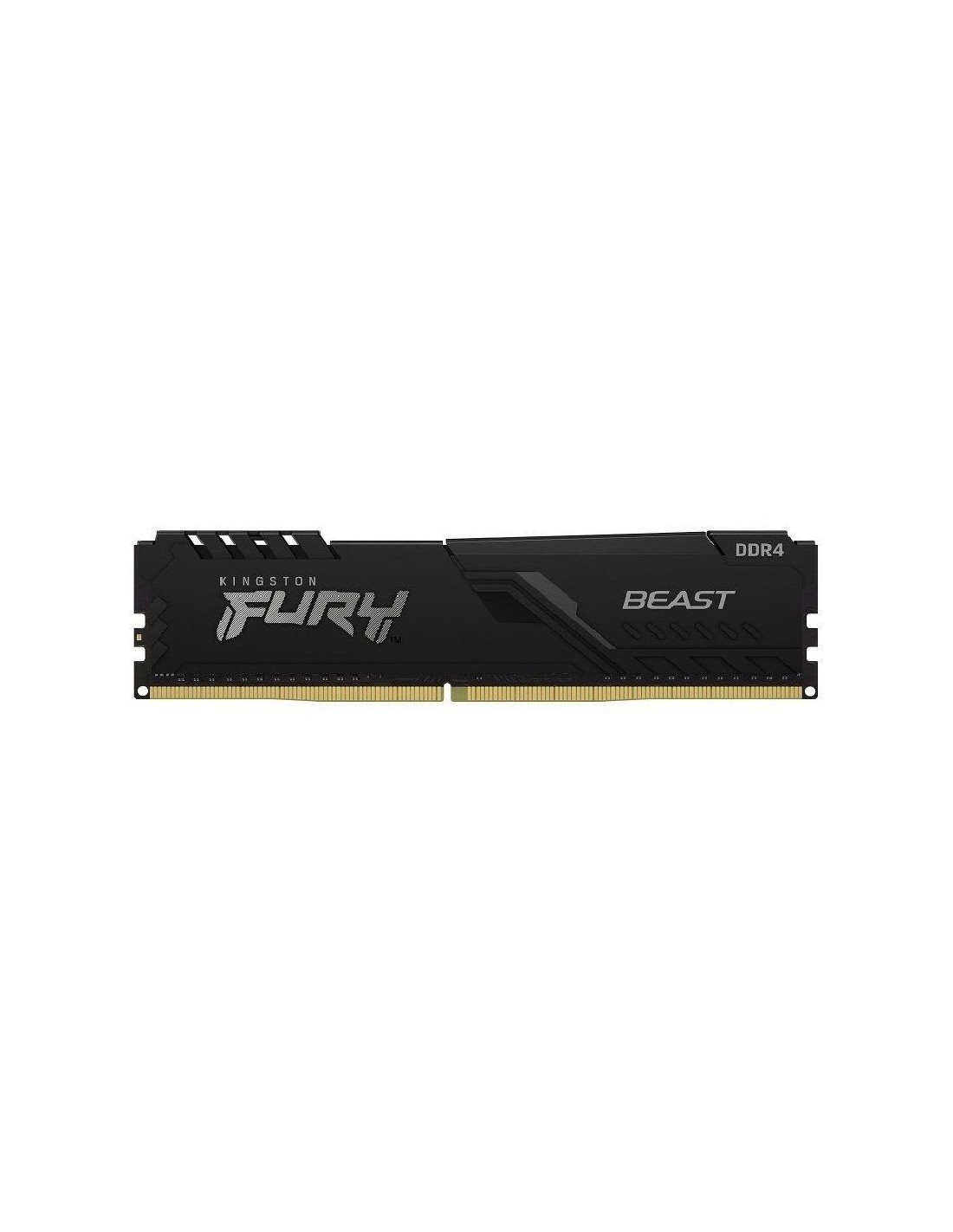

Kingston Memoria Fury Beast Black Ddr4 32gb 2666mhz Cl16

KF426C16BB/32 32GB 4G x 64-Bit DDR4-2666 CL16 288-Pin DIMM Continued >> FEATURES FURY KF426C16BB/32 is a 4G x 64-bit (32GB) DDR4-2666 CL16 SDRAM (Synchronous DRAM) 2Rx8, memory module, based on sixteen 2G x 8-bit FBGA components per module. Each module kit supports Intel® Extreme Memory Profiles (Intel® XMP) 2.0. Each module has been tested to run at DDR4-2666 at a low latency timing of 16-18-18 at 1.2V. Additional timing parameters are shown in the Plug-N-Play (PnP) Timing Parameters section below. Each 288-pin DIMM uses gold contact fingers. The JEDEC standard electrical and mechanical specifications are as follows: CL(IDD) Row Cycle Time (tRCmin) Refresh to Active/Refresh Command Time (tRFCmin) Row Active Time (tRASmin) UL Rating Operating Temperature Storage Temperature 16 cycles 45.75ns(min.) 260ns(min.) 29.25ns(min.) 94 V - 0 0o C to +85o C -55o C to +100o C FACTORY TIMING PARAMETERS Default (Plug N Play): DDR4-2666 CL16-18-18 @ 1.2V XMP Profile #1: DDR4-2666 CL16-18-18 @ 1.2V Power Supply: VDD = 1.2V Typical VDDQ = 1.2V Typical VPP = 2.5V Typical VDDSPD = 2.2V to 3.6V On-Die termination (ODT) 16 internal banks; 4 groups of 4 banks each Bi-Directional Differential Data Strobe 8 bit pre-fetch Burst Length (BL) switch on-the-fly BL8 or BC4(Burst Chop) Height 1.34 (34mm), w/heatsink Document No. 4809922A 06/22/21 Page 1 https://www.kingston.com/dataSheets/KF426C16BB_32.pdf
