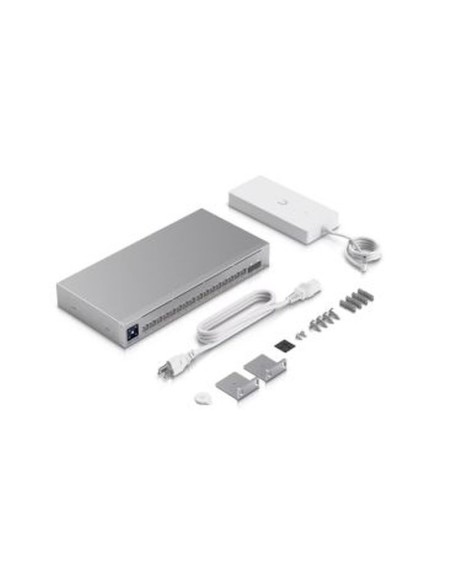

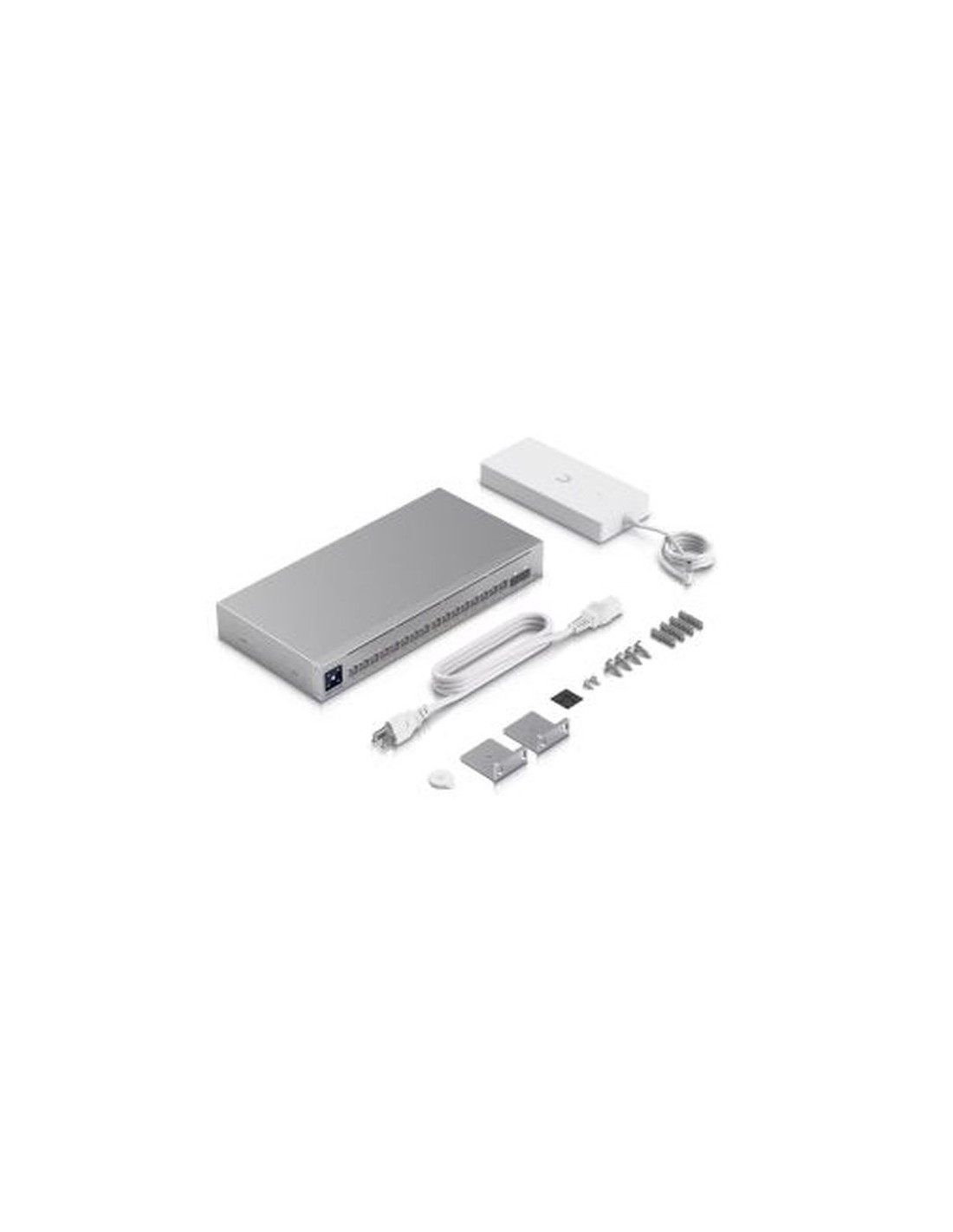

Ubiquiti switch usw-pro-max-16-poe

Ubiquiti USW-PRO-MAX-16-POE Un conmutador Etherlighting* de capa 3 y 16 puertos con 2,5 GbE, salida PoE++ y opciones de montaje versátiles. (4) puertos PoE++ de 2,5 GbE (12) puertos PoE+ GbE (2) puertos SFP+ de 10 G Disponibilidad PoE total de 180 W Montaje versátil en sobremesa, pared y bastidor (requiere accesorio opcional UACC-PRO-MAX-16-RM). Sistema de refrigeración silencioso y sin ventilador *Puertos Etherlighting que se iluminan para indicar la ubicación del puerto, la velocidad/enlace y la VLAN/red nativa. Requiere cables de conexión UniFi Etherlighting Mechanical Dimensions 325.1 x 160 x 43.7 mm (12.8 x 6.3 x 1.7) Weight 2.1 kg (4.6 lb) Enclosure material SGCC steel Hardware Management interface Ethernet In-Band Networking interface (12) GbE RJ45 ports (4) 1/2.5 GbE RJ45 ports (2) 10G SFP+ ports PoE interface (12) PoE/PoE+ (Pins 1, 2+; 3, 6-) (4) 60W PoE++ (Pair A 1, 2+; 3, 6-) (Pair B 4, 5+; 7, 8-) Total non-blocking throughput 42 Gbps Switching capacity 84 Gbps Forwarding rate 62.496 Mpps Power method DC adapter Power supply 54V, 210W Max. power consumption 30W (Excluding PoE output) Total available PoE 180W Max. PoE wattage per port by PSE PoE: 15.4W PoE+: 30W PoE++: 60W Voltage range PoE mode PoE: 4457V PoE+/PoE++: 5057V LCM display (1) 1.3 touchscreen Button Factory reset Ambient operating temperature -5 to 40° C (23 to 104° F) Ambient operating humidity 10 to 90% noncondensing Certifications CE, FCC, IC Switching Features Layer 2 features IGMP snooping STP / RSTP with priorities and port-level disable Port isolation Storm control Voice VLAN Port mirroring LACP port aggregation Multicast / broadcast rate limiting MAC address blocking Flow control 802.1X control Jumbo frames Proprietary loop protection DHCP snooping / guarding Egress rate limit LLDP-MED Port restricted by MAC Device isolation with ACLs Layer 3 features DHCP for locally-managed networks DHCP relay Inter-VLAN routing between networks on same switch Static routing between local networks Network isolation with ACLs Etherlighting Ethernet Locating Speed/link Native VLAN/network SFP+ Locating Speed/link Native VLAN/network Application Requirements UniFi Network Version 8.1.127 and later
