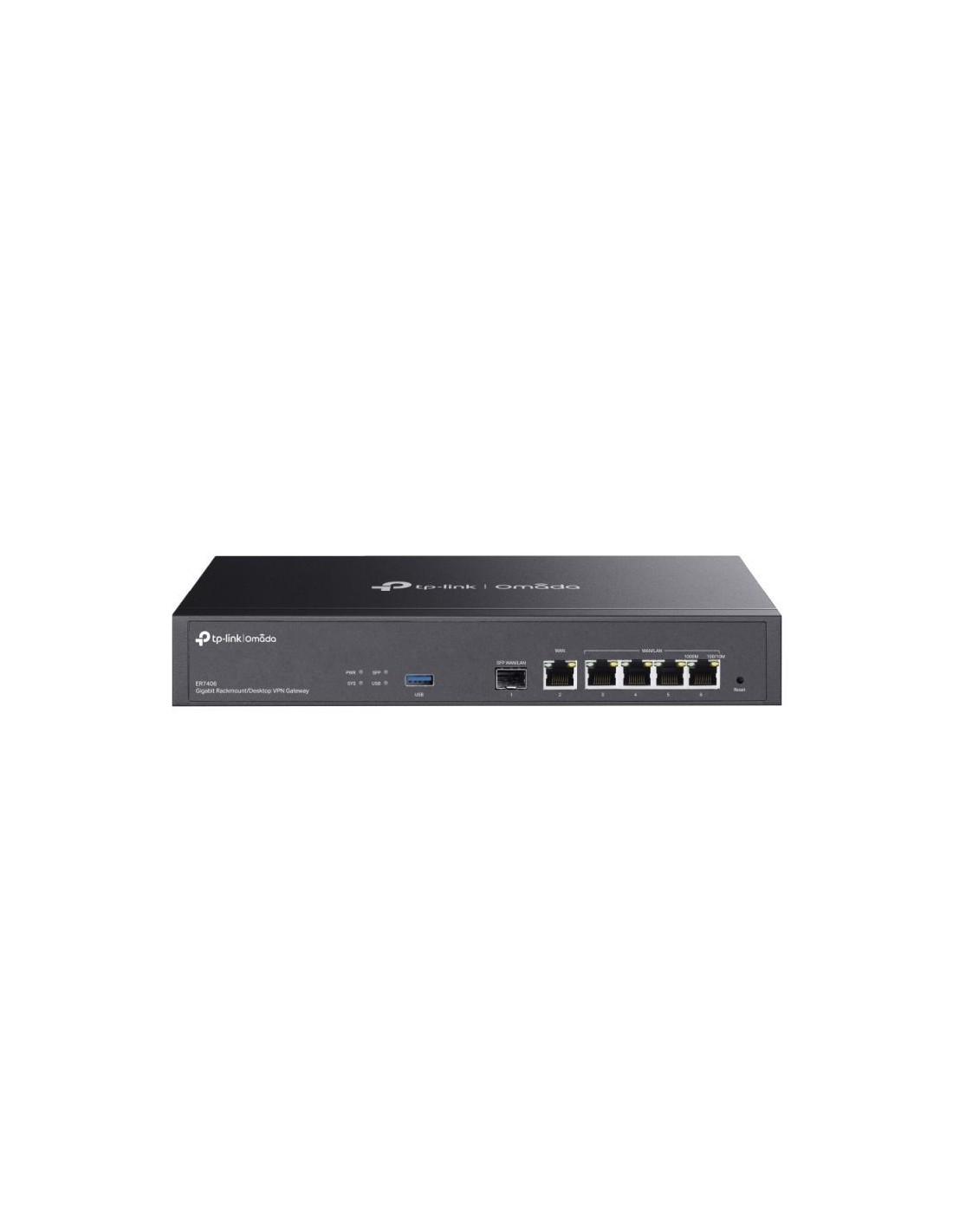

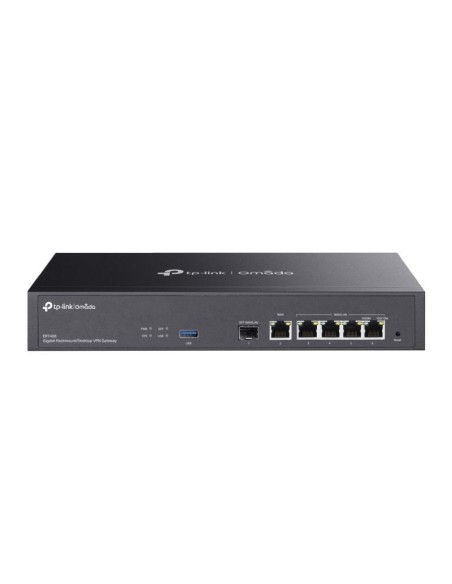

Router VPN Omada Multi-Gigabit 1× puerto WAN/LAN Gigabit SFP 5 puertos Gigabit RJ45 (1 WAN, 4 WAN/LAN) 1 puerto USB 3.0 (admite almacenamiento USB y copia de seguridad LTE con dongle LTE) El balanceo de carga en los 5 puertos WAN aumenta la tasa de utilización de la banda ancha multilínea VPN de alta seguridad SSL/ IPSec / GRE§ / WireGuard / PPTP / L2TP y OpenVPN Gestión centralizada en la nube a través de la web o de la aplicación Omada*. Protección DoS/DDoS, filtrado IP/MAC/URL, DPI e IPS/IDS para una mayor seguridad. Montaje en rack/sobremesa SEGURIDAD Control de Acceso Source/Destination IP Based Access Control Filtrado WEB Group Filtering§ URL Filtering Web Security§ Inspección ARP Sending GARP Packets ARP Scanning§ IP-MAC Binding Defensa contra Ataques TCP/UDP/ICMP Flood Defense Block TCP Scan (Stealth FIN/Xmas/Null) Block Ping from WAN CARACTERÍSTICAS DE HARDWARE Estándares y Protocolos IEEE 802.3, IEEE802.3u, IEEE802.3ab, IEEE802.3z, IEEE 802.3x, IEEE 802.1q TCP/IP, DHCP, ICMP, NAT, PPPoE, NTP, HTTP, HTTPS, DNS, IPSec, PPTP, L2TP, OpenVPN, WireGuard VPN, GRE VPN, SNMP Interfaz 1 Gigabit SFP WAN/LAN Port 1 Gigabit WAN Port 4 Gigabit LAN/WAN Ports 1 USB 3.0 Port (supports USB LTE dongle and USB storage) Medios de Red 10BASE-T: UTP category 3, 4, 5 cable (Max 100 m) EIA/TIA-568 100O STP (Max 100 m) 100BASE-TX: UTP category 5, 5e cable (Max 100 m) EIA/TIA-568 100O STP (Max 100 m) 1000BASE-T: UTP category 5, 5e, 6 cable (Max 100 m) Cantidad de Ventiladores Fanless Botones Reset Button Fuente de Alimentación 100-240VAC, 50/60Hz Flash 128 MB NAND DRAM 512 MB DDR4 LED PWR, SYS, SFP, USB, WAN(1000M Link/Act, 100/10M Link/Act), WAN/LAN (1000M Link/Act, 100/10M Link/Act) Dimensiones 11.6 × 5.5 × 1.7 in (294 × 140 × 44 mm) Protección 4 kV surge protection Carcasa Steel Montaje Desktop Rackmountable Consumo de Potencia Máximo 7.5 W (with USB 3.0 connected) 4.5 W (without USB 3.0 connected) RENDIMIENTO IPS Throughput TCP: 229 Mbps; UDP: 188 Mbps DPI Throughput TCP: 933 Mbps; UDP: 927 Mbps GRE Unencrypted: 611.9 Mbps Encrypted: 325.0 Mbps WireGuard VPN 341.3 Mbps Sesiones Concurrentes 150,000 Nuevas sesiones/Segundos 5,300 NAT (IP Estática) 945.3 Mbps / 940.5 Mbps NAT(DHCP) 939.6 Mbps / 940.9 Mbps NAT(PPPoE) 943.6 Mbps / 940.9 Mbps NAT (L2TP) 880.1 Mbps / 859.0 Mbps NAT (PPTP) 855.0 Mbps / 907.2 Mbps Rendimiento VPN IPsec ESP-SHA1-AES256: 617.1 Mbps ESP-SHA256-AES256: 592.8 Mbps ESP-SHA384-AES256: 592.4 Mbps ESP-SHA512-AES256: 604.5 Mbps OpenVPN 139.1 Mbps Rendimiento VPN L2TP Unencrypted: 977.4 Mbps Encrypted: 334.6 Mbps Rendimiento VPN PPTP Unencrypted: 1064.1 Mbps Encrypted: 206.8 Mbps Rendimiento VPN SSL 131.6 Mbps 66 Byte Packet forwarding rate 1,453,489 pps / 1,453,488 pps 1,518 Byte Packet forwarding rate 81,279 pps / 81,275 pps FUNCIONES BÁSICAS Tipo de conexión WAN Static IP Dynamic IP PPPoE(supports MRU Configuration) PPTP L2TP Clonado MAC Modify WAN/LAN MAC Address (LAN MAC Address can be modified only in Standalone Mode) DHCP DHCP Server DHCPv6 PD Server (only in Standalone Mode) DHCP Options Customization DHCP Address Reservation Multi-IP Interfaces Multi-Net DHCP IPv6 StaticIP/SLAAC/DHCPv6/PPPoE/6to4Tunnel/PassThrough/Non-Address mode VLAN 802.1Q VLAN IPTV IGMP v2/v3 Proxy, Custom Mode, Bridge Mode FUNCIONES AVANZADAS Enrutamiento Avanzado Static Routing Policy Routing RIP (available in Standalone Mode) OSPF (available in Standalone Mode) Control de Ancho de Banda IP-based Bandwidth Control Balanceo de Carga Intelligent Load Balance Application Optimized Routing Link Backup (Timing, Failover) Online Detection NAT One-to-One NAT Multi-Net NAT Port Forwarding Port Triggering§ NAT-DMZ FTP/H.323/SIP/IPSec/PPTP ALG UPnP Límite de sesión IP-based Session Limit VPN GRE v (Only in Standalone Mode) SSL VPN 50 Tunnels VPN IPsec 100 IPSec VPN Tunnels LAN-to-LAN, Client-to-LAN Main, Aggressive Negotiation Mode DES, 3DES, AES128, AES192, AES256 Encryption Algorithm IPsec Failover IKE v1/v2 MD5, SHA1, SHA2-384 and SHA2-512 Authentication Algorithm NAT Traversal (NAT-T) Dead Peer Detection (DPD) Perfect Forward Secrecy (PFS) VPN PPTP PPTP VPN Server PPTP VPN Client (10)** 50 Tunnels PPTP with MPPE Encryption VPN L2TP L2TP VPN Server L2TP VPN Client (10)** 50 Tunnels L2TP over IPSec OpenVPN OpenVPN Server OpenVPN Client (5)** 55 OpenVPN Tunnels Certificate + Account Mode Full Mode WireGuard VPN 20 Tunnels AUTENTICACIÓN Autenticación web No Authentication Simple Password* Hotspot (Local User /Voucher*/ SMS/Radius*) External Radius Server External Portal Sever<* LDAP§ GESTIÓN Omada App Yes. Requires the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller. Gestión Centralizada Omada Cloud-Based Controller Omada Hardware Controller Omada Software Controller Acceso a la nube Yes. Requires the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller. Servicio Dynamic DNS (Dyndns, No-IP, Peanuthull, Comexe, DDNS Customization) Mantenimiento Web Management Interface Remote Management Export & Import Configuration SNMP v1/v2c/v3 Diagnostics (Ping & Traceroute) (only in Standalone Mode) NTP Synchronize (only in Standalone Mode) Port Mirroring CLI (only in Standalone Mode) Syslog Support Aprovisionamiento sin contacto Yes. Requires the use of Omada Cloud-Based Controller. Funciones de gestión Automatic Device Discovery* Batch Configuration* Batch Firmware Upgrading* Intelligent Network Monitoring* Abnormal Event Warnings* Unified Configuration* Reboot Schedule* Otros Certificaciones CE, FCC, RoHS Contenido del Paquete ER7406 Power Cord Quick Installation Guide Rackmount Kit Requisitos del sistema Microsoft Windows 98SE, NT, 2000, XP, Vista or Windows 7/8/8.1/10 MAC OS, NetWare, UNIX or Linux Factores Ambientales Operating Temperature: 0 °C to 50 °C (32 °F to 122°F) Storage Temperature: -40 °C to 70 °C (-40 °F to 158 °F) Operating Humidity: 10% to 90% non-condensing Storage Humidity: 5% to 90% non-condensing
