Mercusys switch 10-port 10-100mbps desktop 8-port poe+

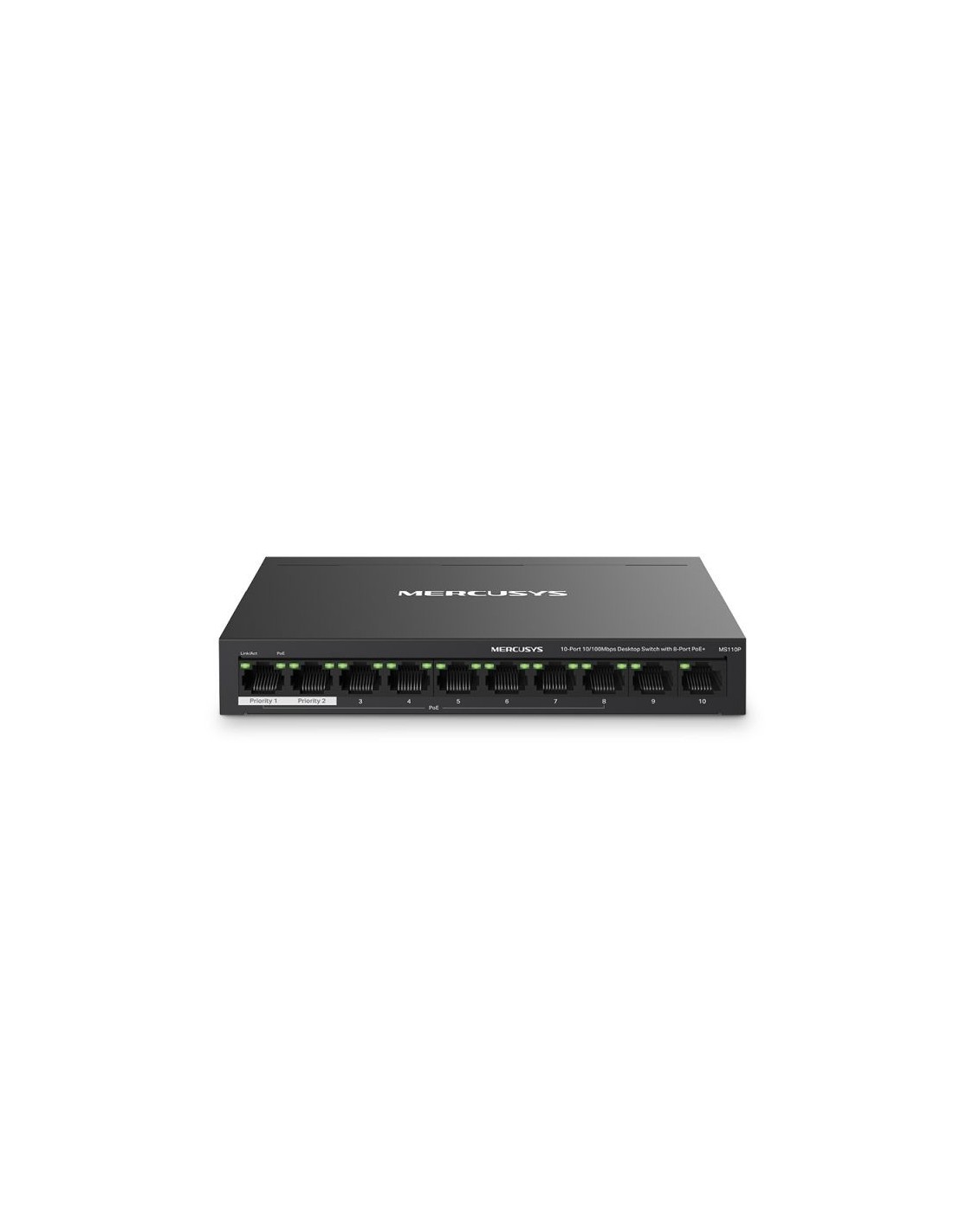

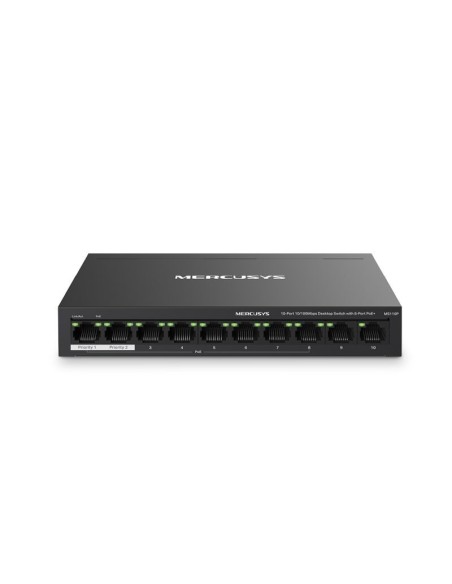

10-Port 10/100Mbps Desktop Switch with 8-Port PoE+ 10 Ports: 10× 10/100 Mbps RJ45 ports with 8 PoE+ ports Two Cables in One: With 8 PoE+ ports, transfers data and power on one single cable High Power PoE+: Support PoE Power up to 30 W for each PoE port and 65 W for all PoE ports* 2× Uplink Ports: MS110P provides 2× uplink ports when turning on the isolation mode. One for connecting to the Internet and one for connecting to the NVR. Long-Range up to 250 m: Increases PoE transmission distance to 250 m by Extend Mode* Isolation Mode: One click to divide traffic for specific ports for stability and security Compliant with Powered Devices: Works with IEEE 802.3af/at compliant PDs Durable Metal Casing: Allows for efficient heat dissipation and long network life Plug and Play: Simple to use and saves time and effort PoE Auto Recovery: Automatically reboots your dropped or unresponsive PoE-powered devices HardwareDimensions 171*98*27 mm PoE Ports RJ45 Standard: Compliant with 802.3 af/at Powered Devices PoE Ports: Port 1- Port 8 PoE Power Budget: 65 W Interfaces 10× 10/100 Mbps Ports, Auto-Negotiation, Auto MDI/MDIX External Power Supply External Power Adapter (Output: 53.5V/1.31A) Installation Desktop Wall Mount Standards and Protocols IEEE 802.3x Flow Control Data Rates 10/100 Mbps at Half Duplex 20/200 Mbps at Full Duplex Jumbo Frame 2 KB Mac Address Table 2K Max Power Consumption 2.96W(220 V / 50 Hz, no PD connected) 77.52W(220 V / 50 Hz, with 65W PD connected) Max Power Consumption 10.064 BTH/h (no PD connected) 263.568 BTH/h(with 65W PD connected) OthersPackage Contents 10-Port 10/100Mbps Desktop Switch with 8-Port PoE+ (MS110P) Power Adapter Quick Installation Guide Environment Operating Temperature: 0?~40? (32?~104?) Storage Temperature: -40?~70? (-40?~158?) Operating Humidity: 10%~90% RH non-condensing Storage Humidity: 5%~95% RH non-condensing
