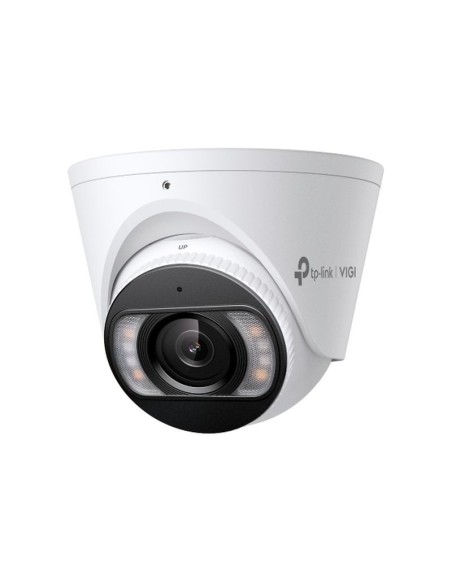

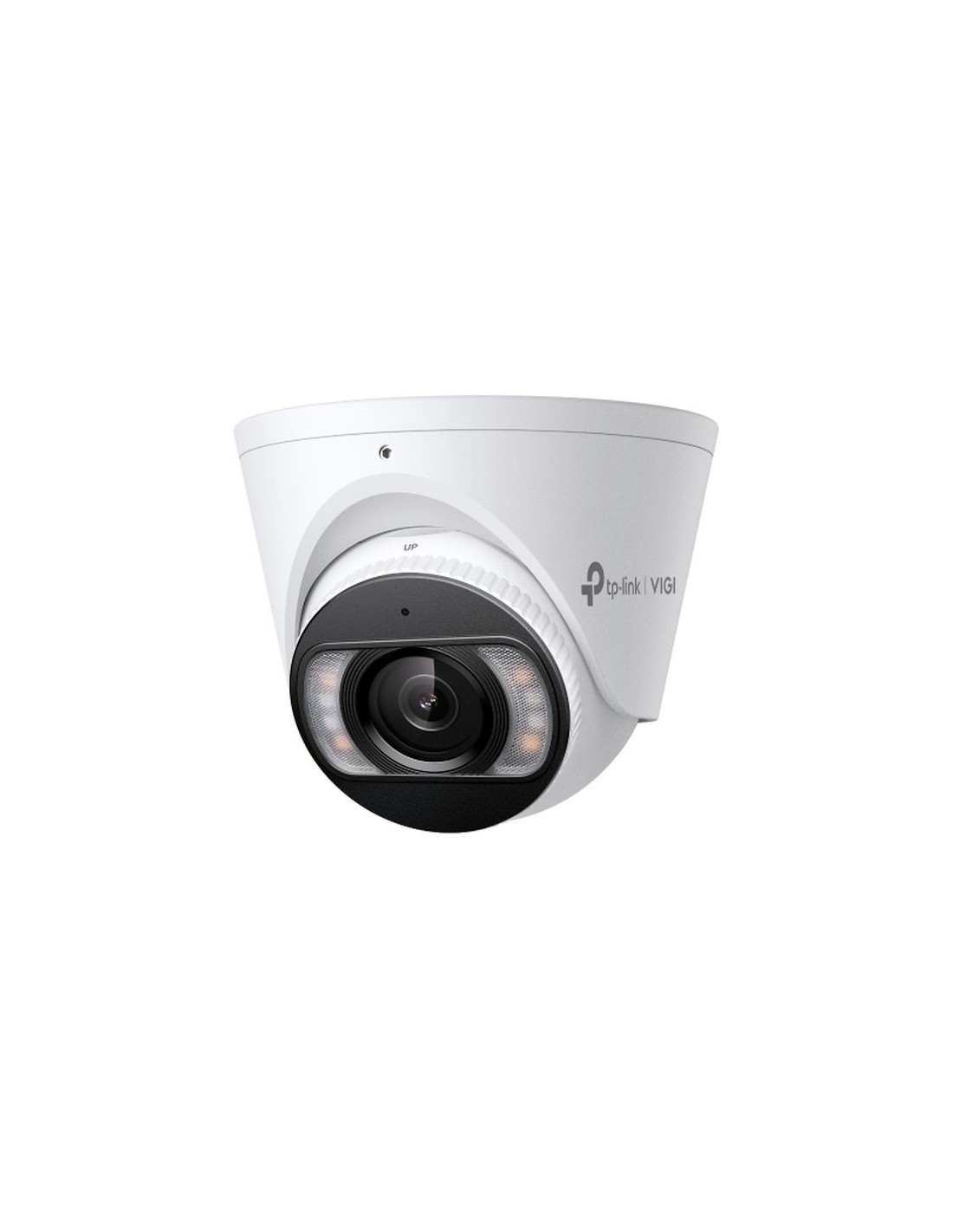

Cámara IP VIGI tipo turret Full Color VIGI de 8MP 8MP (4K) de súper alta definición y 24 horas a todo color Análisis de personas y vehículos Clasificación de personas y vehículos Detección inteligente Tecnología de mejora de vídeo inteligente Defensa activa y audio bidireccional Estanqueidad IP67 Tecnología de compresión H.265 12V DC/PoE Cámara Sensor de Imagen 1/2.7 Progressive Scan CMOS Shutter Speed 1/3 to 1/10000 s Slow Shutter Yes Iluminación Mínima 0.005 Lux; 0 Lux with IR/White light Mecanismo Día/Noche IR Cut Filter Day/Night Switch Unified/ Scheduled/ Auto LENS Type Fixed Focal Lens Focal Length 2.8/4 mm Aperture F1.6 FOV 2.8 mm: Horizontal FOV: 111.4°, Vertical FOV: 58.8°, Diagonal FOV: 134° 4 mm: Horizontal FOV: 91.5°, Vertical FOV: 46.1°, Diagonal FOV: 109.6° Lens Mount M12*P 0.5 DORI Distance 2.8 mm Detect: 85 m (278 ft) Observe: 35 m (116 ft) Recognize: 17 m (56 ft) Identify: 8 m (28 ft) 4 mm Detect: 107 m (350 ft) Observe: 44 m (146 ft) Recognize: 21 m (70 ft) Identify: 11 m (35 ft) Angle Adjustment (Manual) Range Pan: 0° to 360°, Tilt: 0° to 85°, Rotation: 0° to 360° ILLUMINATOR IR LED Quantity: 4 Range: 30m Wavelength: 850nm White LED Quantity: 4 Range: 30m Illuminator On/Off Control Auto/Scheduled/Always on/Always off VIDEO Max. Resolution 3840 X 2160 Main Stream Frame Rate: 50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps 60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps Resolution: 3840x2160, 2560x1440, 2304x1296, 2048x1280, 1920x1080, 1280x720 Note: If the image rotation is set to 90° or 270°, the frame rate only supports up to 20fps. If 120dB is turned on, the frame rate can only support up to 20fps. Sub-Stream Frame Rate: 50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps 60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps Resolution: 704x576,640x480, 352x288, 320x240 Note: If the image rotation is set to 90° or 270°, the frame rate only supports up to 20fps. If 120dB is turned on, the frame rate can only support up to 20fps. Bit Rate Control CBR, VBR Compresión de video Main Stream: H.265+/H.265/H.264+/H.264 Sub-Stream: H.265/H.264 H.264 Type High Profile H.264+ Main Stream Supported H.265 Type Main Profile* H.265+ Main Stream Supported* Video Bit Rate Main Stream: 256 Kbps to 6 Mbps Sub-Stream: 64 Kbps to 512 Kbps Image Image Settings Mirror Brightness Contrast Saturation Sharpness Exposure WDR White Balance Prevent Overexposure to Infrared Light HLC Adjustable by Client Software Image Enhancement BLC/3D DNR/HLC/SmartIR Wide Dynamic Range 120 dB SNR = 52 dB Image Parameters Switch Yes Privacy Mask Up to 4 Masks ROI 1 Region OSD Setting Yes AUDIO Comunicación de Audio Two-Way Audio Entrada de Audio Yes Salida de Audio Yes Compresión de Audio Yes Audio Sampling Rate 8KHz Environment Noise Filtering Yes Audio Bit Rate 64 Kbps(G.711 alaw) Red Protocolo TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS ONVIF Yes API Open Network Video Interface (Profile S) Vista en vivo simultánea 3 Main Streams & 3 Sub-Streams Client VIGI App, VIGI Security Manager, Web UI, VIGI VMS Web Browser Google Chrome® 57 and above Firefox® 52 and above Safari® 11 and above Microsoft® Edge 91 and above Cloud Yes Seguridad Password Protection, HTTPS Encryption, IP Address Filter, Digest Authentication ALARMA Y GESTIÓN DE EVENTOS Smart Event Human & Vehicle Classification Intrusion Detection Line-Crossing Detection Region Entering Detection Region Exiting Detection Object Abandoned Detection Object Removal Detection Loitering Detection Smart Frame People Detection Vehicle Detection Basic Event Motion Detection Video Tampering Detection Exception ( Illegal Login) Scene Change Detection Alarm Linkage Memory Card Video Recording Message Push Audible Warning White Light Flashing Linkage Method N/A Output Notification Message Push Deep Learning Function People & Vehicle Analytics Search and filter to people or vehicle of interest based on many different attributes, making post-event search faster and easier.§ INTERFACES Interfaz de Red 1 RJ45 10/100M Self-Adaptive Ethernet Port, PoE Alarma N/A Reset Button Yes Power DC Power Port Almacenamiento interno Built-In Memory Card Slot, Support MicroSD Card, up to 256 GB** Built-in Microphone Yes; Records Anything Going on within a 15-ft Radius of the Camera Built-in Speaker Yes Audio N/A GENERAL Temperatura de funcionamiento -3060 °C Storage Temperature -4060 °C Humedad de funcionamiento 95% or Less (Non-Condensing) Storage Humidity 95% or Less (Non-Condensing) Contenido del Paquete VIGI Network Camera Quick Start Guide Waterproof Cable Attachments Mounting Accessories Material Metal Peso neto 0.48 Kg Power Supply 12V DC ± 5%, Max. 11.5 W, 5.5 mm Coaxial Power Plug PoE: 802.3af/at, class 0, Max. 12.5 W Protection IP67 Product Dimensions (L x W x H) 111 × 111 × 83.7 mm Certificaciones CE, NTRA, VCCI, KC, BSMI, FCC, IC
